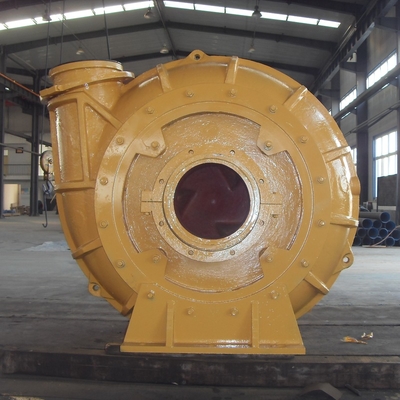

Developing World Water Solutions 10/8 Inch Large Particle Size Dredge River Sand Gravel Pump

1 set
MOQ
$15,000.00(1 - 1 sets) $13,000.00(2 - 2 sets) $10,000.00(>=3 sets)
価格
Developing World Water Solutions 10/8 Inch Large Particle Size Dredge River Sand Gravel Pump
特徴 ギャラリー 製品の説明 見積依頼
特徴
仕様
Warranty: 1 year, 12 months
Customized support: OEM, ODM, OBM
Model Number: 200WND
Application: Developing World Water Solutions, Machining, Marine, Metal and Equipment Manufacturers, Mining industry, Wastewater Transport and Flood Control, wastewater treatment, Water Treatment Solutions
Horsepower: 100HP, or as customer request
Power Source: Diesel Engine or electric
Pressure: High Pressure
Structure: Single-stage Pump,Centrifugal pumps
Outlet Size: 200mm
Voltage: 380-600 V as required
Product name: Sand or gravel dredging pump
Function: River, sea, lake, port dredging
Engine type: Diesel or electric
Inlet dia.: 250mm
Outlet dia: 200mm
Power: 160KW
Head: 20m
Capacity: 600m3/h
Particle size: Max. 178mm
基本情報
Model Number: 200WND
お支払配送条件
Packaging Details: In carton or in bulk or in container
製品の説明
Product Overview

Sand, mud, slurry, stone, gravel dredging pump

WN (Q) series Dredging pump is a new type of mud-pump, which is developed by using various advanced computer-aided design software, in view of the imminent situation of rivers disrepair, dredging and dredger filling in China.
The series of mud pump with the overall structure of applicable to Marine, digging mud performance, long life, high efficiency, shaft seal reliable, the use of comprehensive economic benefits and other characteristics, can fully meet the dredger on the mud pump requirements, each set of products through the China Classification Society CCS ship Inspection.
At present, the series of mud pump has provided supporting successfully for cutter suction type, bucket wheel type，trailing hopper type dredger etc. Made a huge contribution for dredging rivers, port.
FEATURES AT A GLANCE
Performance and structural characteristics of WN (Q) series Dredging pump:
* Simple and reliable structure, easy disassembly, easy maintenance
* Good dredging properties
* Good cavitation performance
* Strong flow capacity, wide applicability
* Performance curve acts drop
* Can realize the pump performance of a variety of deployment
* Good abrasion resistance and long life of over-current components
* Small hydraulic loss, high efficiency, low energy consumption
* Reliable shaft seal without leakage
Side elevation Back elevation Side elevation

WN Type Series Dredging Pump Profile (for preliminary selection only)
PRODUCT SPECIFICATIONS
WN Type Series dredging pump performance parameters (Preliminary selection only)
Model
Capacity (m3/h)
Head (m)
Speed (r/min)
Efficiency (%)
NPSHr
(m)
Inlet Dia. (mm)
Outlet Dia.
(mm)
Max.Dia.of flowed Particle (mm)
200WND
600~800
20~40
700~900
60~65
<4.5
250
200
178
200WN
750~1000
40~65
700~850
70~72
<4
250
200
180
250WND
950~1100
20~40
500~700
65~70
<4
300
250
220
250WN
1100~1300
40~65
500~650
70~74
<4
350
250
144
300WND
1500~1800
20~40
400~600
65~68
<4
350
300
241
300WN
1800~2200
40~65
400~550
74~78
<4
450
300
241
350WN
2600~3000
40~65
400~550
74~78
<4.5
450
350
245
400WN
2800~3200
20~40
400~550
74~78
<4.5
450
400
250
450WN
3200~3850
40~66
350~500
76~80
<4.5
600
450
254
500WNQ
3600~4200
20~40
220~320
72~75
<4.8
600
500
330
500WN
4500~5500
40~65
350~450
78~80
<4.8
650
500
250
600WN
7000
62
470
80
<6
700
600
220
600WNQ
7000
30
380
83
<6
700
600
220
700WN
10000
85
380
85
<6
760
700
280
700WNQ
10000
28
280
85
<6
760
700
280
800WN
12500
59
349
81
<6
800
750
300
800WNQ
12500
32
258
81
<6
800
750
300
800WND
12500
32
258
81
<6
800
750
300
850WN
14400
70
330
85
<6
900
850
320
900WN
16000
30
175
85
<6
1000
900
340
1000WN
16000~25000
23~76
181~290
85~87
<6
1200
1000
350
PRODUCT CONFIGURATION
Pump casing
Material: Strong unique wear resistant white cast iron A05
Brand: Boxin
Original: China Shijiazhuang
Impeller
Material: Strong wear resistant alloy cast iron KB17
Brand: Boxin
Original: China Shijiazhuang
Front and rear guards
Material: Strong wear resistant alloy cast iron KB17
Brand: Boxin
Original: China Shijiazhuang
Bearing assembly
Material: High quality alloy steel
Wafangdian Bearing
Suitable material
Slurry pumps are widely used in industry of mining, electrical power, metallurgy, coal, environmental protection, etc for
transportation of abrasive solid slurry.





WN type dredge pump shaft seal form

Mechanical Seal


Packing Seal

Packing and Mechanical seal
Successful Project
Project in cutter suction dredger
Project in wheel bucket dredger
Project in jet suction dredger
Project in river sand dredger
Project in fish boat
Project in big sea sand dredger
SIMILAR PRODUCTS
450WN dredging pump
500WN sand pump
600WN gravel pump
Company Profile
Shijiazhuang Boxin Pump Co., Ltd. is a collection of scientific research, design, manufacturing in one of the slurry pump and dredging the main production base of mud pump, Complete Product Specifications, Excellent performance, Reliable operation. We are specializing in the production of pumps for 50 years. Its design, development and production capacity are ranked in the forefront of the same industry, has strong market competitiveness and good corporate integrity, Many times by the relevant departments as the contract and trustworthy enterprise.
Our company mainly produces G (A), WN type dredging pump and Ah, ZGB, ZJ, and ZQ (submersible) Slurry pump Products, at the same time provide supporting valves, cyclones, control cabinets and other products, widely used in mining, dredging, metallurgy, steel, coal, electricity, water conservancy and other enterprises and institutions.
Workshop
Our Service

Pre-Sales Service

Receive client’s inquiry
Introduce various pump to clients
Study clients mining and dredging conditions
Recommend reasonable pump to clients

Engineers supply oversea after-sales service at worksite

Free oversea after-Sales Service

Inspection and testing before delivery
Engineers installation and training service
Supply all relevant drawings to clients
Timely supply of required accessories


Certificate
Test certificate of marine pump by CCS
Test certificate of marine pump by CCS
Test certificate of marine pump by CCS
Clients visiting
