Name: energy & Slurry Pump Spare Parts Slurry Pump Mining Kit Tube
Brand: energy & Slurry Pump Spare Parts Slurry Pump Mining Kit Tube
SKU: According to mud pump model
Price: 1 USD
Availability: InStock
Rating: 4.8 (109 reviews)

特徴ギャラリー製品の説明見積依頼

特徴

仕様

Condition: New

Warranty: Unavailable

Applicable Industries: Energy & Mining

Showroom Location: None

Type: mud pump valve assembly

Model Number: According to mud pump model

Local ServiceÂ Location: None

Name: mud pump valve assembly

Material: 20CrMnTi, 20CrNiMo, etc.+rubber

hardness: up to HRC60

service life: â‰¥ 300h

Available in size: 4", 4.5", 5". 5.5". 6". 6.25", 6.5", 6.75", 7"

Advantage: high resistance to water, oil and synthetic based drilling fluids

Type 1: through-hole valve

Type 2: three-rib valve

Type 3: four-rib valve

Available pump brands: BOMCO, EMSCO, NATIONAL, OILWELL, IDECO, etc.

基本情報

Model Number: According to mud pump model

お支払配送条件

Packaging Details: Plywood wooden box

Supply Ability: 50000 Set/Sets per Month

製品の説明

Product Description

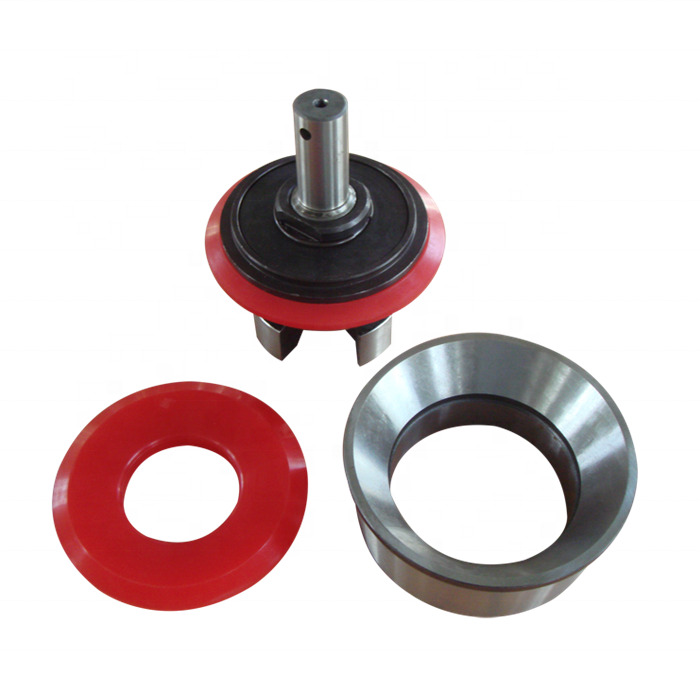

The valve assembly is the key component of the hydraulic end of the mud pump. The valve assembly consists of valve body, valve rubber, valve nut, guide frame, gland, clamp spring, steel ball, etc. (i.e. valve assembly with valve seat removed).

According to the inner hole form of the valve seat, the valve assembly can be divided into a through hole valve, a three-rib valve and a four-rib valve. The valve body and the valve seat of the valve assembly are carburized and quenched with high-quality bonded steel 20 Customer-relationship Management NTI, the surface hardness is greater than HRC60, and the conical surface is ground to ensure high roughness requirements and geometric dimensions.

The seal of valve body is made of polyurethane or synthetic rubber and has high wear resistance and long service life. It can be removed and replaced easily.

Four-rib valve body is made of high-quality forged steel with high strength and hardness. The rubber is fixed on the valve body by the valve nut. The valve seat has high strength and impact resistance, and is suitable for high-pressure jet drilling. Compared with four ribs, the three-rib valve body seat has larger displacement, and can provide directly assembled valve body and valve rubber with long service life. The rubber is made of polyurethane material, and the effective service time is more than 300 hours, which greatly improves the overall service life of the valve assembly.

Common part number of mud pump valve

AH0000020100 AH33001-05.17A.00 AH0000020300 GH3161-0511-00 AH36001-05.12A.00 AH36001-05.12.00 AH0000020400 AH35001-05.14.00 AH0000020600 AH0000020500 RGF1000-05.17.00 RS11309.05.10.00

Our company can produce all kinds of valve bodies and seats for different drilling mud pumps. It supplies tens of thousands of sets of oil fields at home and abroad every year. The valve assembly consists of a valve body assembly and a valve seat. The valve body and valve seat supplied by our company are all made of high-grade alloy steel by integral die forging and are processed according to strict technological regulations.

Details Images

Avaliable mud pump models

BOMCO	F-500	F-800	F-1000	F-1300	F-1600	F-1600L	F-2200L
LANSHI	F-500	F-800	F-1000	F-1300	F-1600/F-1600L	F-1600H
		3NB500C	3NB1000C	3NB1300C	3NB1600
		P-800	P-1000	P-1300	P-1600	P-2200
HONGHUA	HHF-500	HHF-800	HHF-1000	HHF-1300	HHF-1600	HHF-1600HL	HHF-2200HL
RONGSHENG (RS)	RSF-500	RSF-800	RSF-1000	RSF-1300	RSF-1300L	RSF-1600	RSF-1600HL
RG	RGF-500	RGF-800	RGF-1000	RGF-1300	RGF-1600
QINGZHOU (QZ)	QZF-500	QZF-800	QZF-1000	QZF-1300	QZF-1600
QINGZHOU (QZ)		QZ3NB-800	QZ3NB-1000	QZ3NB-1300	QZ3NB-1300A	QZ3NB-1600
RONGLI (RL)	RL-F500	RL-F800	RL-F1000	RL-F1300	RL-F1600	RL-F2200
RONGLI (RL)		RL-3NB350	RL-3NB500(A)	RL-3NB600	RL-3NB800	RL-3NB1000(A/D)	RL-3NB1300(A/D)	RL-3NB1600
TSC	WF-400	WF-450	WF-700	WF-1000	WF-1600
EMSCO	F-350/500	F-650	F-800	F-1000	F-1300	F-1600
EMSCO		FA 1300	FB-1300	FA-1600	FB-1600	DB-550	D-300	D-700
NATIONAL	8-P-80	9-P-100	10-P-130	12-P-160	14-P-220
OILWELL	A-600-PT	A-850-PT	A-1100-PT	A-1400-PT	A-1700-PT
OILWELL		A-350	A-560	A-650	A-850	A-1100	A-1400	A-1700
IDECO	T-500	T-800	T-1000	T-1300	T-1600
WIRTH	TPK-1000	TPK-1300	TPK-1600	TPK-2000	TPK-2200
ELLS WILLIAMS	E-447	E-2200	W440	W446
GARDNER DENVER	PZ-7	PZ-8	PZ-9	PZ-10	PZ-11	PZ-L	PA-8
GARDNER DENVER		FY-FXD	FO-FXO	FD-FXX	FG-GXG
RUSSIA PUMPS	UNBT 650	UNBT 950	UNBT 1180L	UNB 600	NBT 600	ETC.

Our Services & Strength

XRR regards continuous learning ability as one of the company’s core competitiveness and provides regular training to employees to enhance their comprehensive abilities and skills.

XRR has a skilled and experienced after sales team geared up for fast response and superior services to our customers at any time. Our Long distance monitoring center is equipped to monitor, diagnose, serve and manage the units delivered. XRR also provides technical training to our customers at regular intervals.

FAQ

1. Are the valve assemblies in stock?

A: The common types are in stock, but some need to be produced by orders.

2. Can I request to change the form of packaging and transportation?

A: Yes, We can change the form of the packaging and transportation according to your request.

3. Can I have my own Logo on the product?

A: Yes, but the logo need to be sent to us when signing the contract.

4. Can you produce the valve assemblies according to my requirements?

A: Yes, we can produce valve assemblies as per your requirements, but all need to be discussed before signing the contract.

5. Can we visit your company before placing order?

Welcome to our company any time you like.
